File Bar Measurements

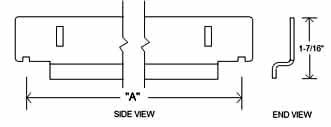

ALLSTEEL

Cabinet Size	"A" Bar Size
30"	26-31/32"
36"	32-31/32"
42"	38-31/32"

HAWORTH

Cabinet Size	"A" Bar Size
30"	26-9/16"
36"	32-9/16"
42"	38-9/16"

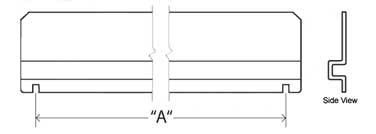

HON TYPE II

Cabinet Size	Bar Size
30"	26-31/32"
36"	32-31/32"
42"	38-31/32"

Herman Miller Meridian

Cabinet Size	"A" Bar Size
30"	26-7/16"
36"	32-7/16"
42"	38-7/16"

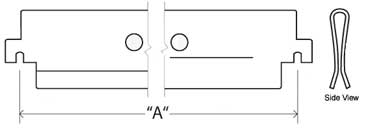

STEELCASE OLD STYLE

Cabinet Size	"A" Bar Size
30"	27"
36"	33"
42"	39"

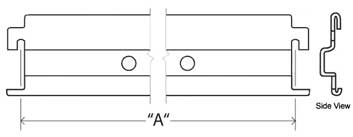

STEELCASE NEW STYLE

Cabinet Size	"A" Bar Size
30"	26-15/16"
36"	32-15/16"
42"	38-15/16"

Universal Bars Custom Cut File Bars/File Rails

A- For Side-to-Side filing
Measure the inside distance from drawer wall to drawer wall. Then subtract 1/8" for the actual bar length. Each clip takes up 1/16" (see pic)
B-For Front-to-Back
First determine if there is a lip or edge that the clip can attach to. If so, the above instructions apply here also. If not, than you must first create a side-to-side filing bar it now becomes the edge that the front-to-back bar attaches to.
