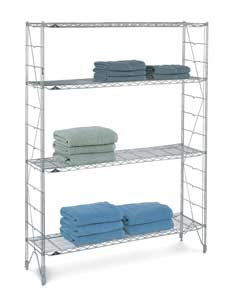

Metro Erecta Shelving

Ease of Assembly: Grooves on shelves position and lock shelves to the uprights. Unit is assembled in minutes. No nuts, bolts or special tools are required.
Unique Design: The open wire construction of Erecta Shelf® minimizes dust accumulation and allows a free circulation of air, greater visibility of stored items and greater light penetration.
Versatile Construction: Erecta Shelf® shelving changes as quickly as your needs change. By using various accessories, hundreds of shelving configurations become possible.
Uprights: Consist of two vertical 1/4" (6mm) diameter outer wires on each side with #4 diameter support wires welded between each of the outer pair spaced at 5" (127mm) intervals. Diagonal wire provides additional support.
Adjustability: Shelves can be placed at 5"(127mm) intervals along the upright.
Adjustable Feet: Bolt levelers compensate for surface irregularities.
• Shipped Knocked Down to save freight costs.
• Durable Chrome-Plated Finish.
Please inquire for a Quote - psorders@problemsolver.us
Regular Erecta Wire Shelves
Width / Length Chrome
12 x 24 1224C
12 x 30 1230C
12 x 36 1236C
12 x 42 1242C
12 x 48 1248C
12 x 60 1260C
18 x 24 1824C
18 x 30 1830C
18 x 36 1836C
18 x 42 1842C
18 x 48 1848C
18 x 60 1860C

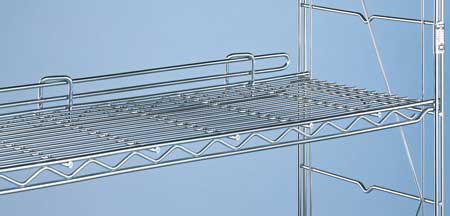

Shelf Ledges
Prevents items from protruding or falling from shelves with these easy-to-install ledges.
Length Chrome
24 L24N-1C
30 L30N-1C
36 L36N- 1C
42 L42N-1C
48 L48N-1C
60 L60N-1C


Rods and Tabs
Form side and back enclosures for a shelving unit. Can also serve as uniform dividers within unit by passing through shelves from top to bottom. Recommended spacing: every 6" (150mm) to 12" (305mm), depending upon shelf contents.
For Post No.(Min.) Rod Length(in) Chrome Stainless Steel
54 52 R52C R52S
63 61 R61C R61S
74 72 R72C R72S
86 84 R84C R84S
Tabs 9084Z

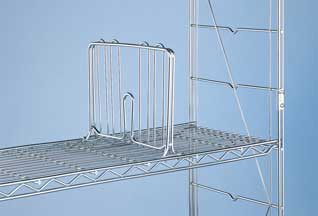

Shelf Dividers
Keeps shelves orderly with these snap-in-place, 8" (203mm) high dividers.
Shelf Width Chrome
12 DD12C
18 DD18C
24 DD24C

Upright Clamps
When units are joined end-to-end, clamps hold adjacent uprights securely together for a higher degree of stability.
Zinc finish.
Part #9971Z
Price $4.00 each
Qty

Corner Braces
When units are joined end-to-end, clamps hold adjacent uprights securely together for a higher degree of stability.
Zinc finish.
Part #9999Z

Foot Plate
Allows you to bolt units to the floor, or use when a broader foot is desired. Adjustable; replaces leveling bolt
Zinc finish.
Part #9999Z
